제품 모델 | 1차 정격 DC전류 | 1차 정격 AC RMS 전류 | 전원 전압 | 비율(1차:2차) | 정격 출력 전류 | 정확성 | 선형성 | 대역폭(Hz) | 구경 사이즈(mm) | Datasheet |
AIT1500-D50 | ±1500A | 1060A | AC220V | 1500:1 | 1000mA | 50ppm | 20ppm | 300k | 50 | High Current Transducer Catalog |
AIT2000-D70 | ±2000A | 1414A | AC220V | 2000:1 | 1000mA | 50ppm | 20ppm | 80k | 70 | High Current Transducer Catalog |
AIT2000-D90 | ±2000A | 1414A | AC220V | 2000:1 | 1000mA | 50ppm | 20ppm | 80k | 90 | High Current Transducer Catalog |
AIT3000-D70 | ±3000A | 2121A | AC220V | 3000:1 | 1000mA | 50ppm | 20ppm | 50k | 70 | High Current Transducer Catalog |
AIT3000-D90 | ±3000A | 2121A | AC220V | 3000:1 | 1000mA | 50ppm | 20ppm | 50k | 90 | High Current Transducer Catalog |

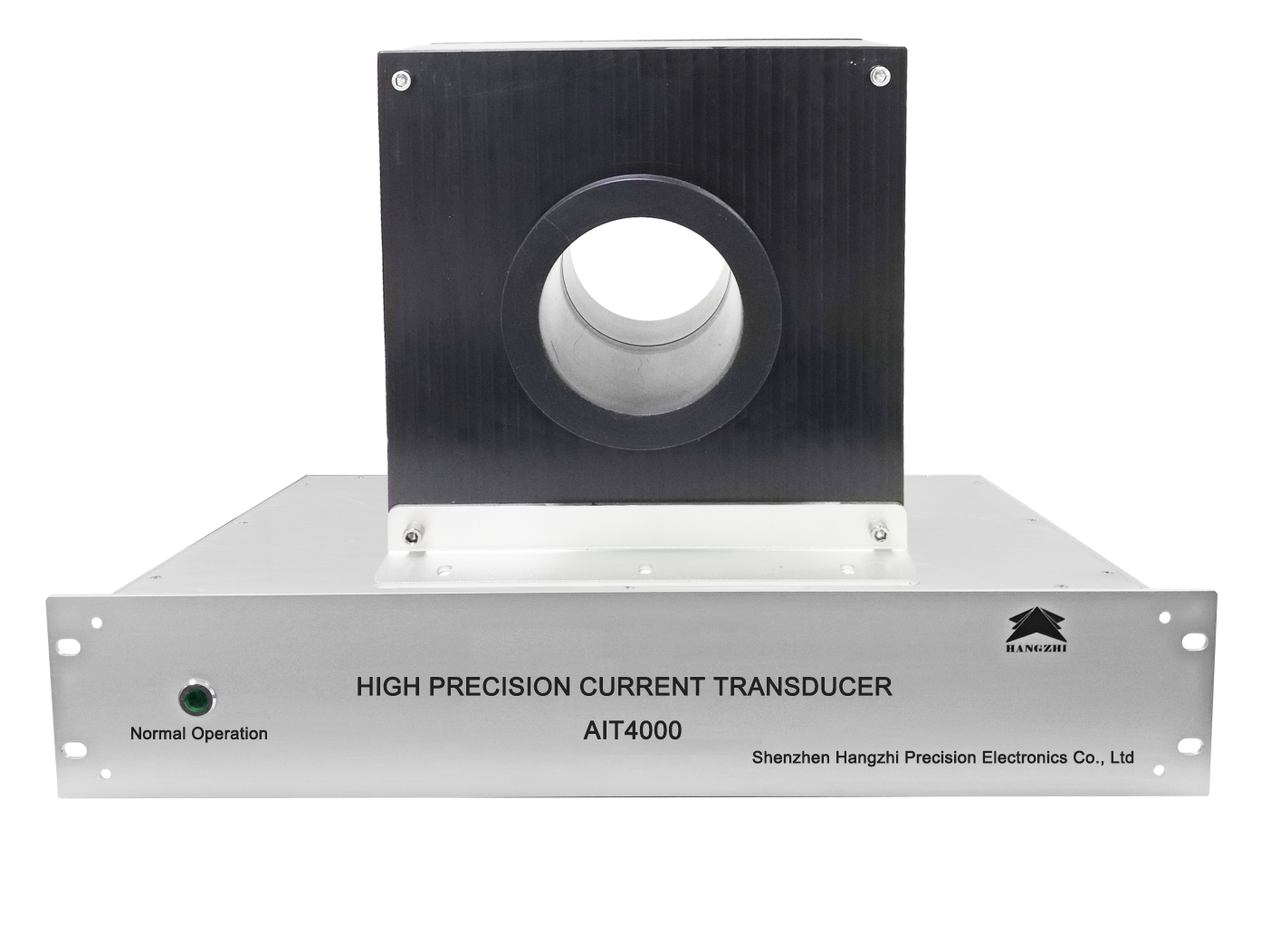

AIT4000-D90 | ±4000A | 2828A | AC220V | 4000:1 | 1000mA | 50ppm | 20ppm | 50k | 90 | High Current Transducer Catalog |
AIT5000-D90 | ±5000A | 3535A | AC220V | 5000:1 | 1000mA | 50ppm | 20ppm | 50k | 90 | High Current Transducer Catalog |
AIT5000-D160 | ±5000A | 3535A | AC220V | 6000:1 | 1000mA | 50ppm | 20ppm | 50k | 160 | High Current Transducer Catalog |
AIT6000-D90 | ±6000A | 4242A | AC220V | 6000:1 | 1000mA | 50ppm | 20ppm | 50k | 90 | High Current Transducer Catalog |
AIT6000-D120 | ±6000A | 4242A | AC220V | 6000:1 | 1000mA | 50ppm | 20ppm | 50k | 120 | High Current Transducer Catalog |
AIT8000-D120 | ±8000A | 5600A | AC220V | 4000:1 | 2000mA | 50ppm | 20ppm | 30k | 120 | High Current Transducer Catalog |
AIT8000-D200 | ±8000A | 5600A | AC220V | 4000:1 | 2000mA | 50ppm | 20ppm | 30k | 200 | High Current Transducer Catalog |
AIT10000-D90 | ±10000A | 7072A | AC220V | 5000:1 | 2000mA | 100ppm | 20ppm | 20k | 90 | High Current Transducer Catalog |
AIT10000-D120 | ±10000A | 7072A | AC220V | 5000:1 | 2000mA | 100ppm | 20ppm | 20k | 120 | High Current Transducer Catalog |
