- GWINSTEK
- 에너지 저장 장치를 위한 자동 충방전 테스트 소프트웨어
- 적용 가능 전원 공급기: PSW/PSU/PSB-2000 시리즈
- 적용 가능 전자 부하: PEL-2000/3000/3000E 시리즈
- 데이터 로깅 기능(옵션)
LinkView: The test solution of Energy Storage Device
Automatic charging and discharging test of Energy Storage Device (LinkVIeW)
GW Instek introduces LinkVIeW software to allow users to quickly set test instruments for the operation of charging and discharging tests on battery and super capacitor, etc.
Users can define charging and discharging procedures to automatically execute procedures so as to obtain measurement results.
History graphs are available and they can be exported to Excel for further analysis.
Features
• Long Term Power Monitoring of I, V, P(W)
• Create/define operation sequence for controlling Source/Load behavior.
• Simultaneously run test sequence of each channel and data logging
• Data Analyzer:
• VIeW chart: support Zoom In/Tracking of Samples
• VIeW table: summaries testing result for VIeW and also each step including Voltage/Current/Power/VMax/Imax/PMax/AmpHour
• Live Data Monitoring:
• VIeW: Self-defined display range/offset adjustable
• Controllable displayed curve
• Programmable DC-Power supply: PSU/PSW/PSB series
• Programmable DC-Load: PEL-2000/PEL-3000 series

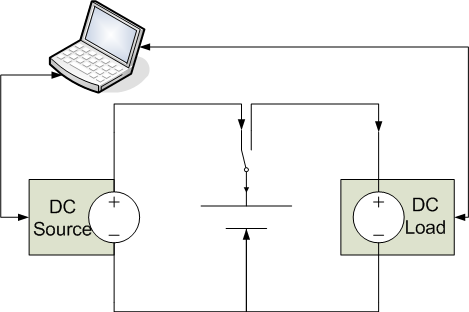

Charging and discharging connection diagram

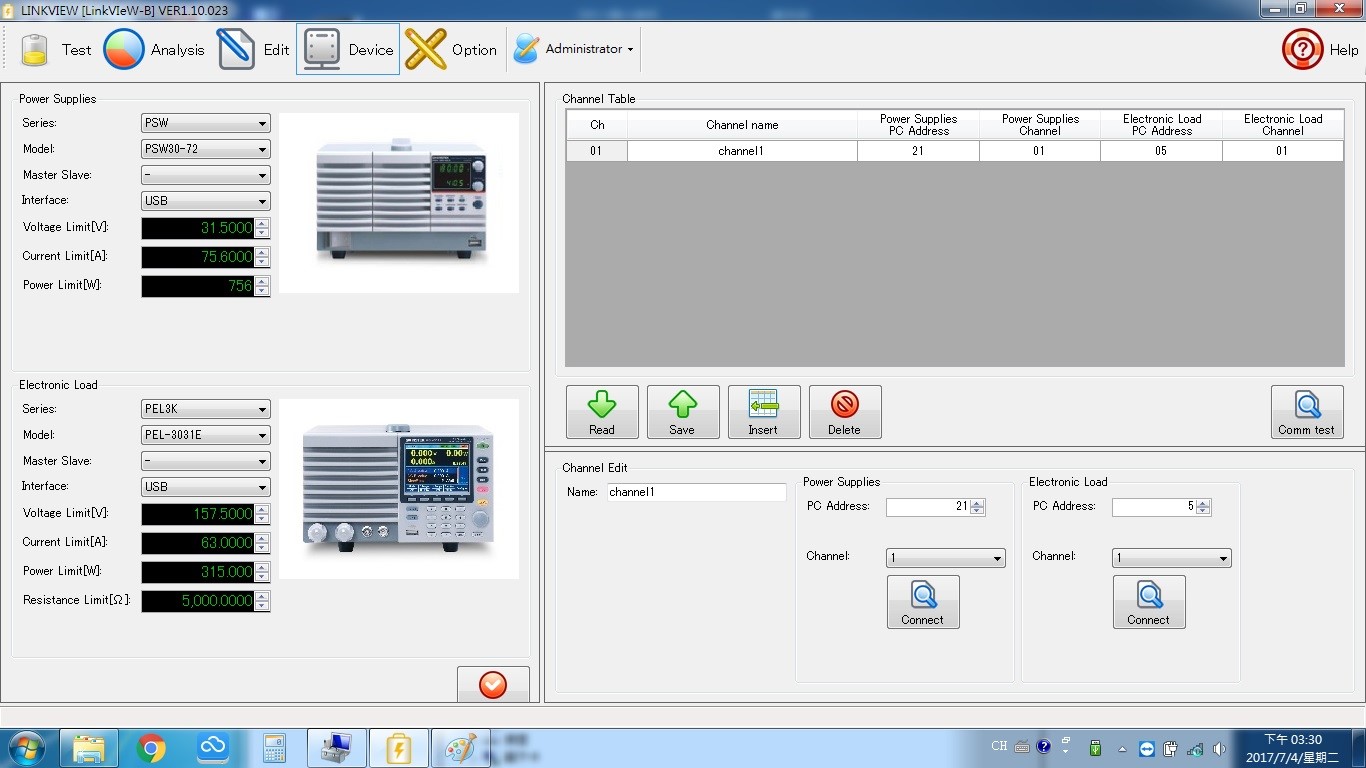

Power supply/load setting

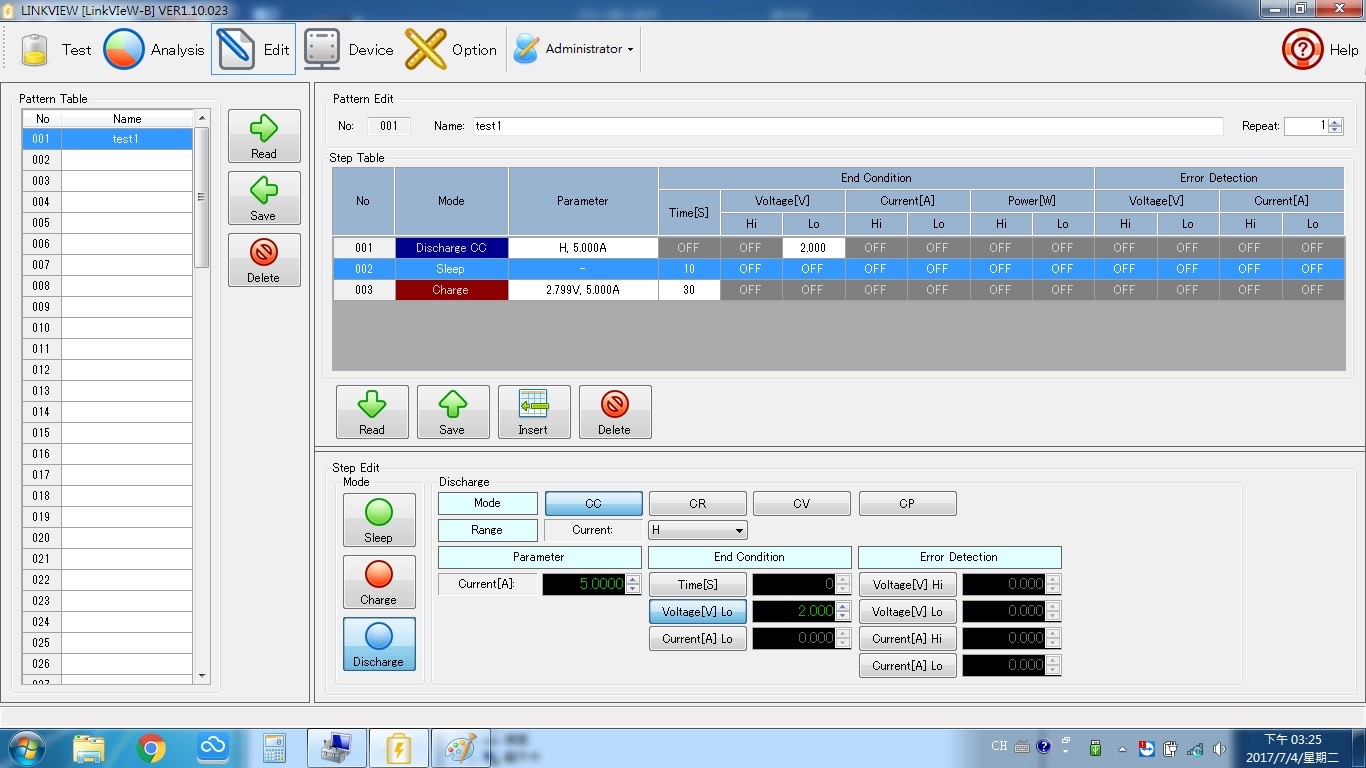

Charging and discharging procedure editing

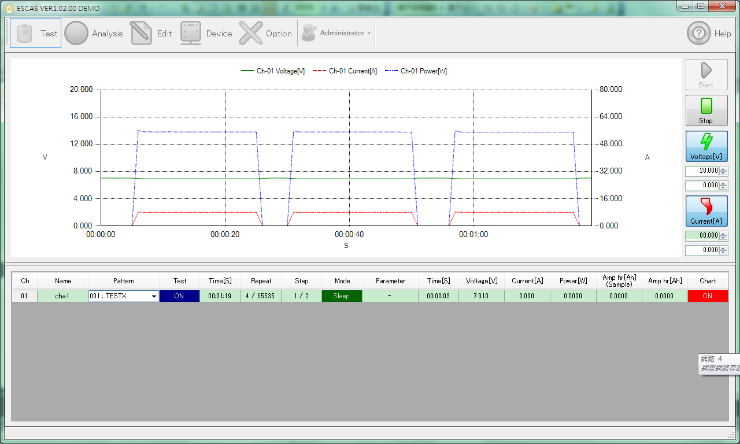

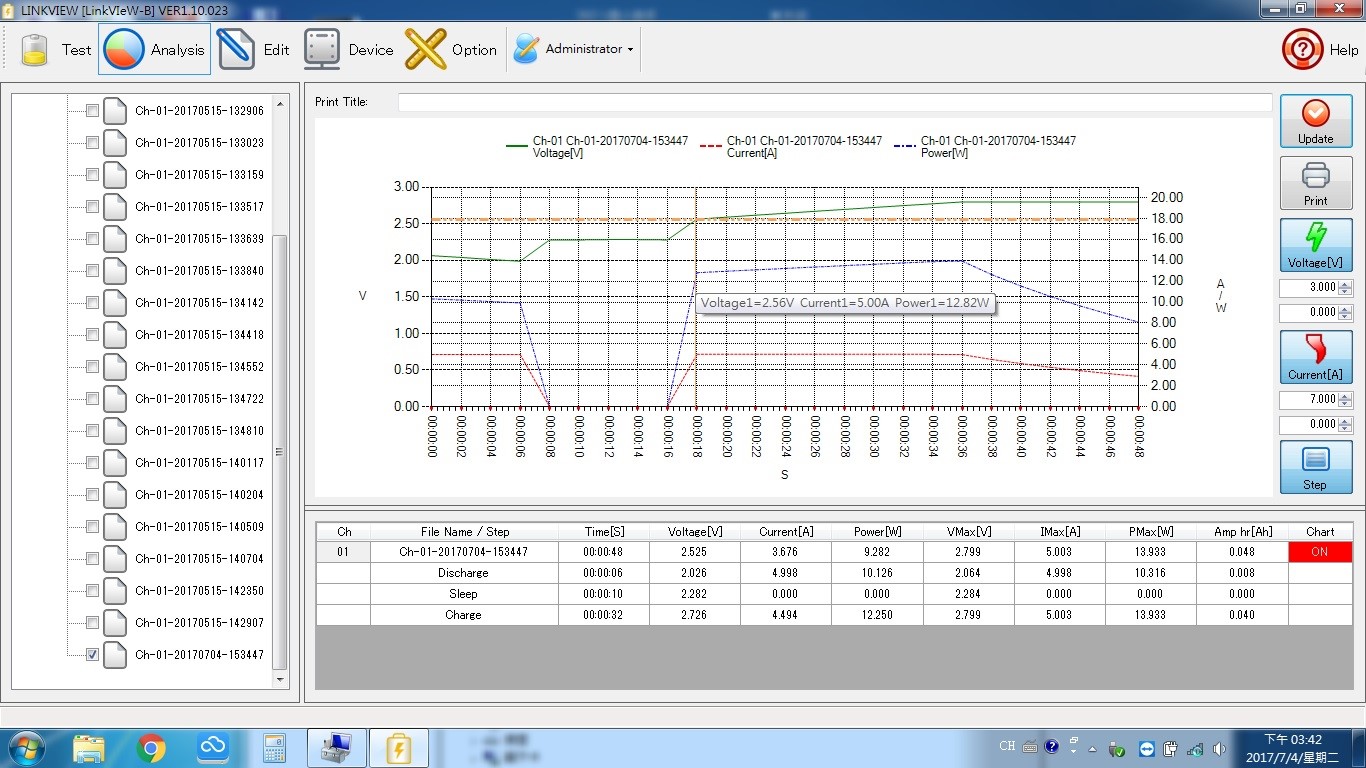

Measurement and analysis displays (Support Zoom in and measurement tracking)
Data Analyze/ Point and View/ Zoom-In/ Zoom Out/ Mnemonics display of testing steps/ Testing parameter VIeW display of each step
